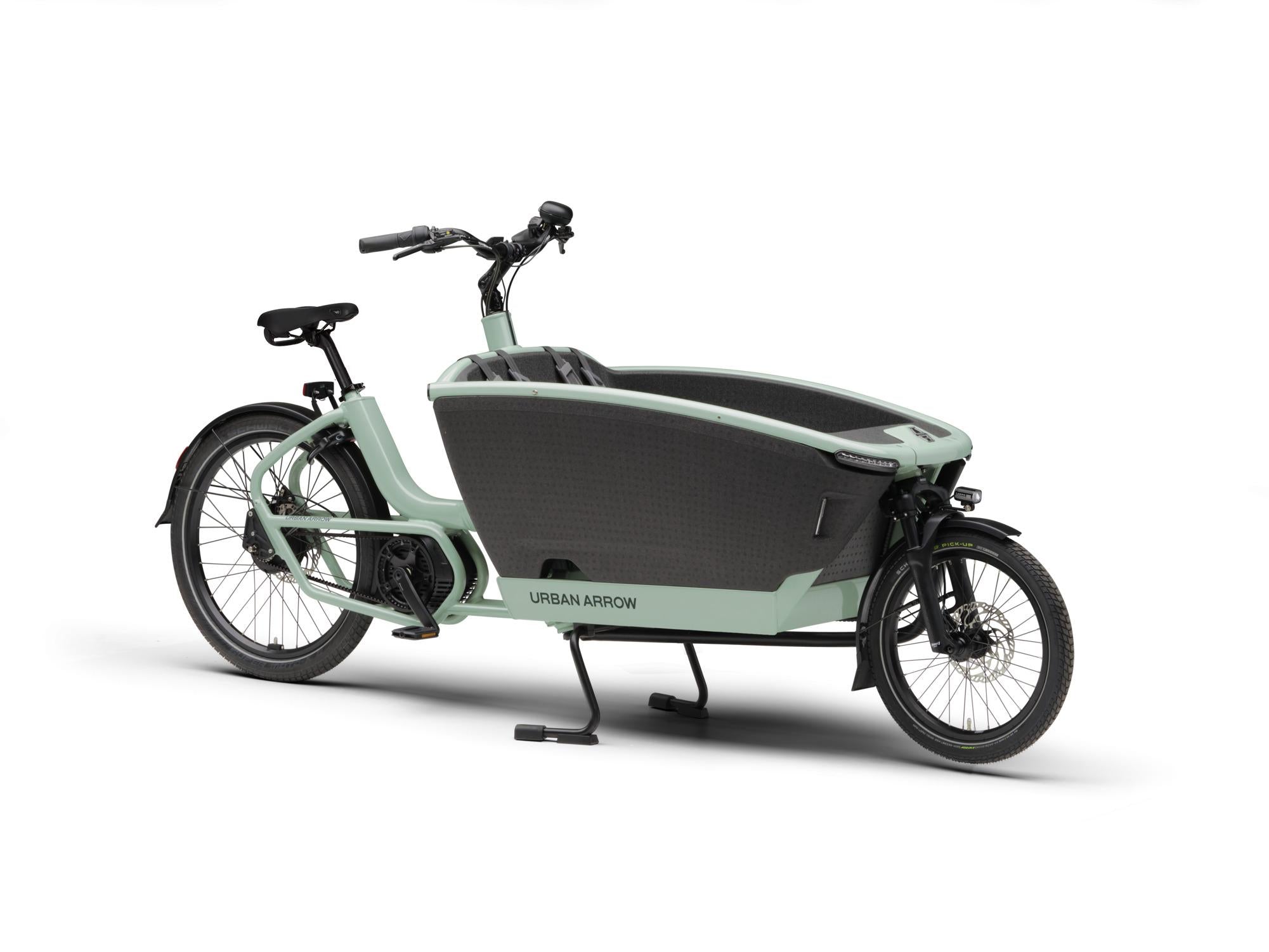

Urban Arrow Family Next Pro

SKU: 210000004149
(0)
$8,999.00
Out of stock
Color

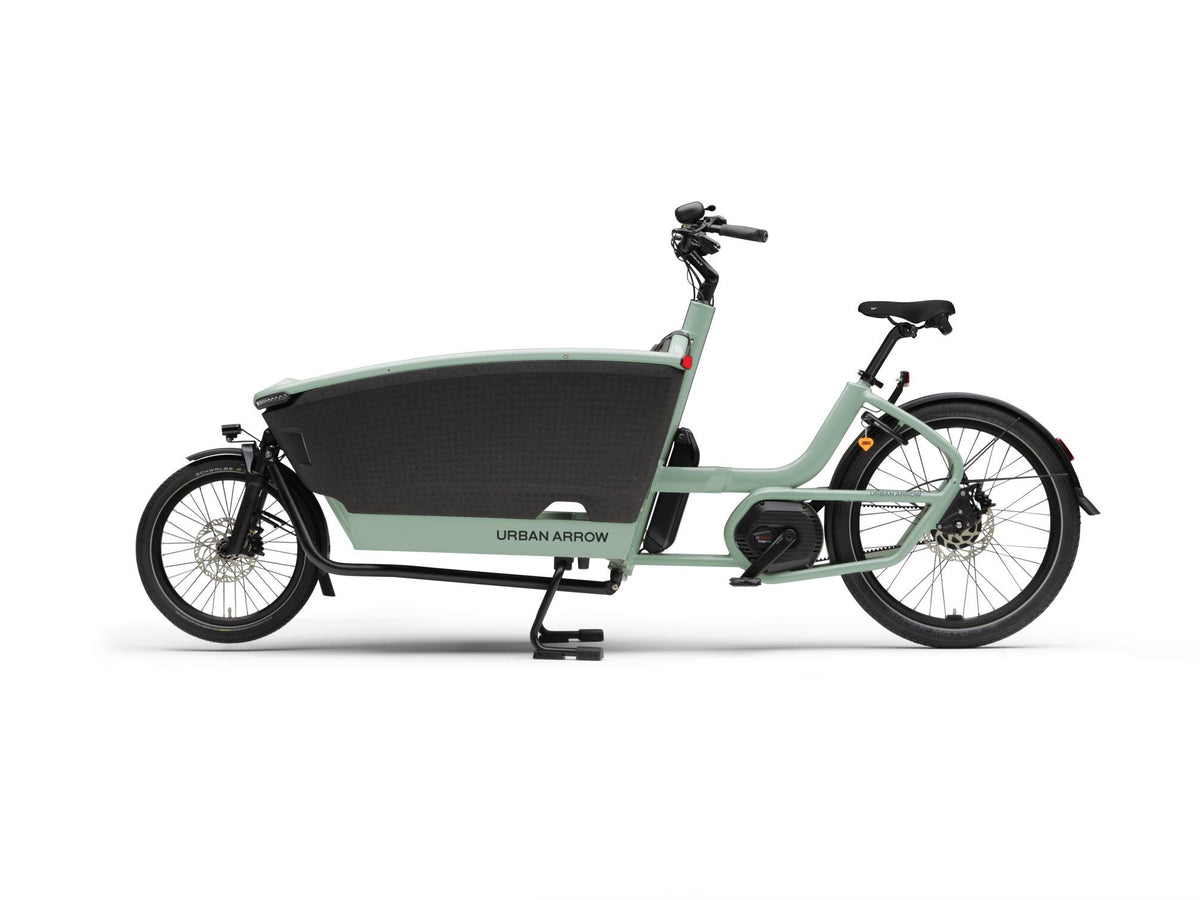

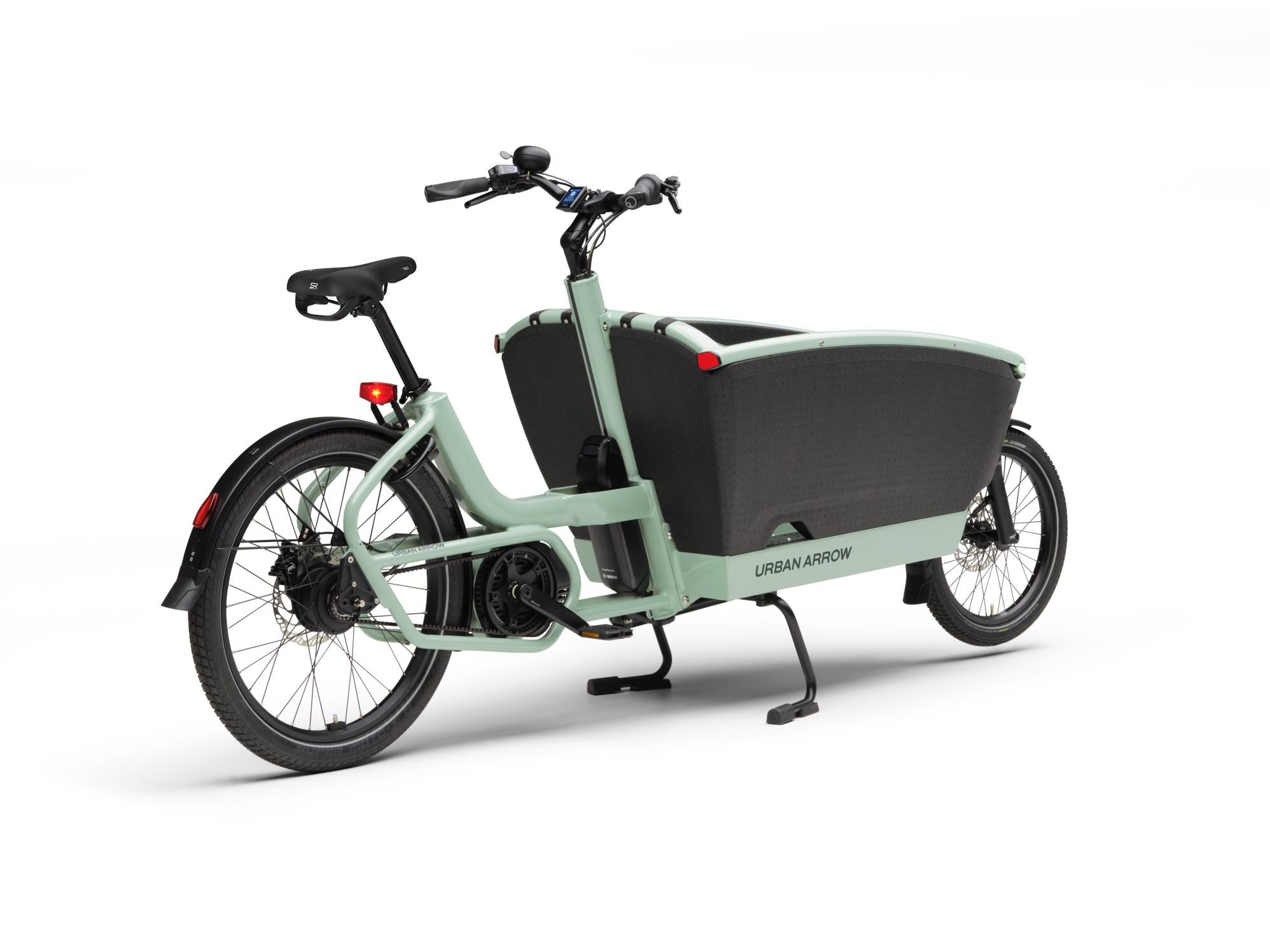

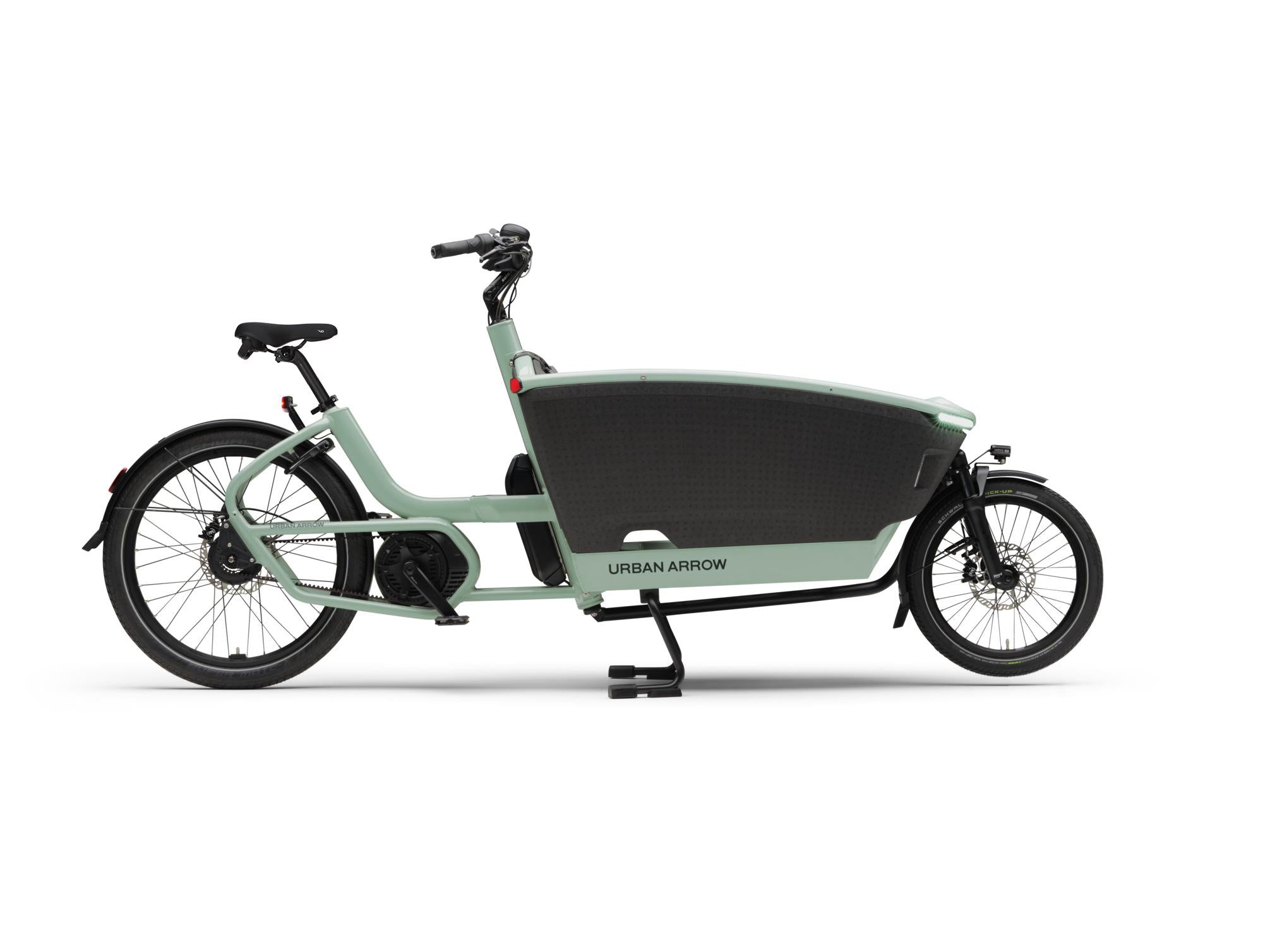

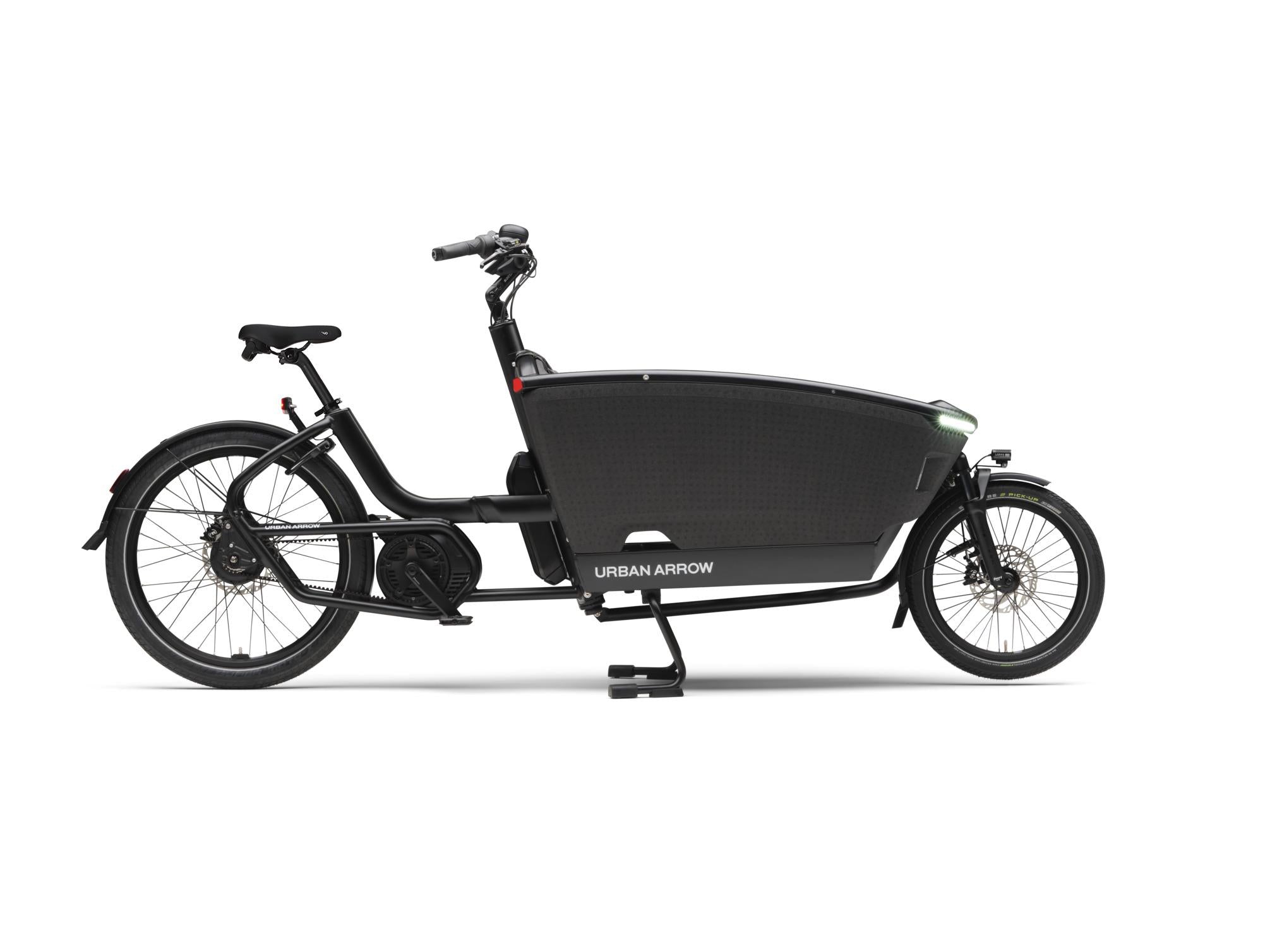

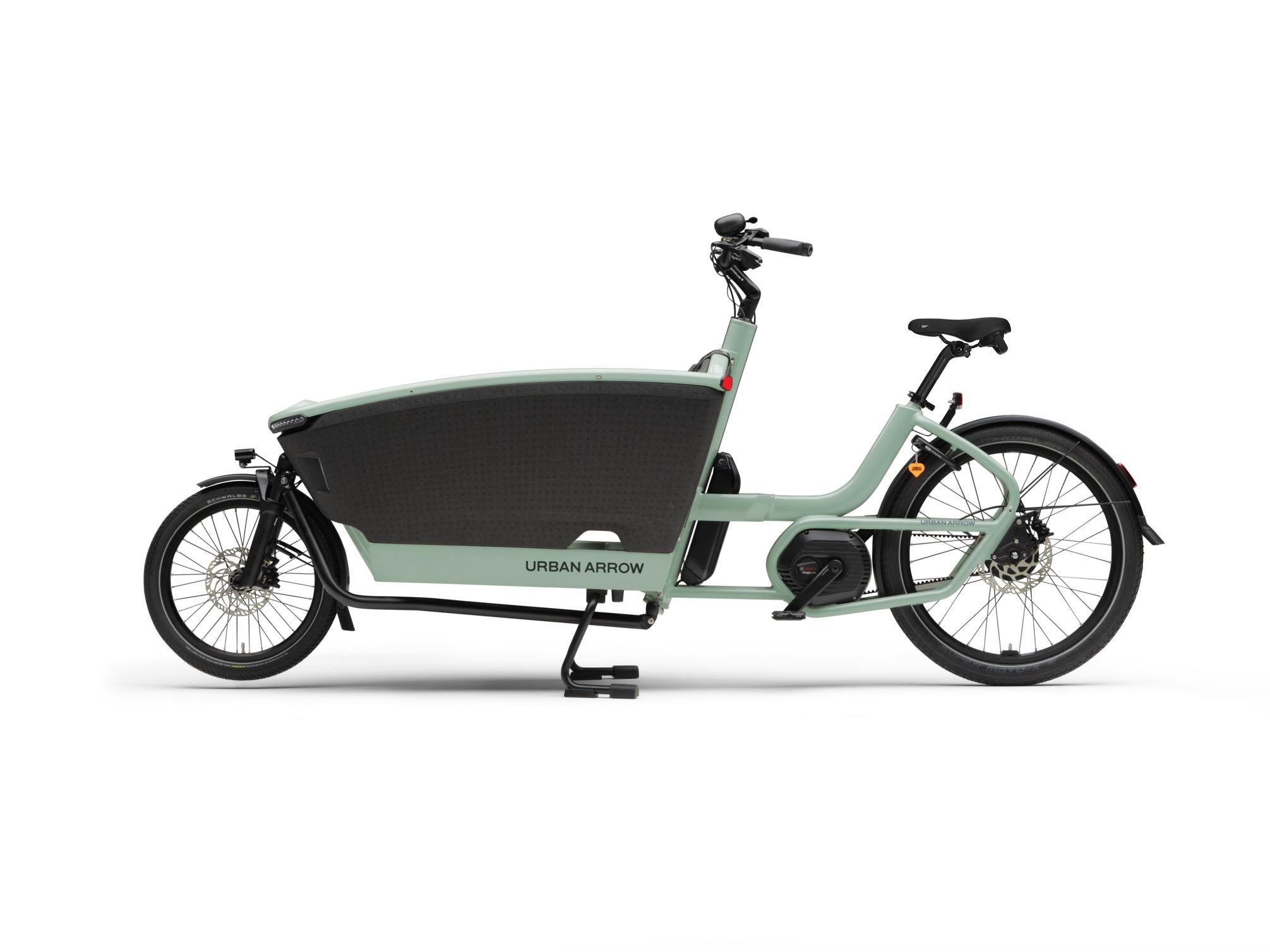

The Urban Arrow FamilyNext comes with everything you’ve come to love and expect from us. Build to the highest standards, it offers the most spacious design and is equipped with the best of the best components from our trusted, premium partners in the biking industry. The lowered centre of gravity makes you feel stable and comfortable.

Specs

Frame (rear): Aluminium
Motor: Bosch Cargo Line Gen 4 BES3, 250W - max 85 Nm

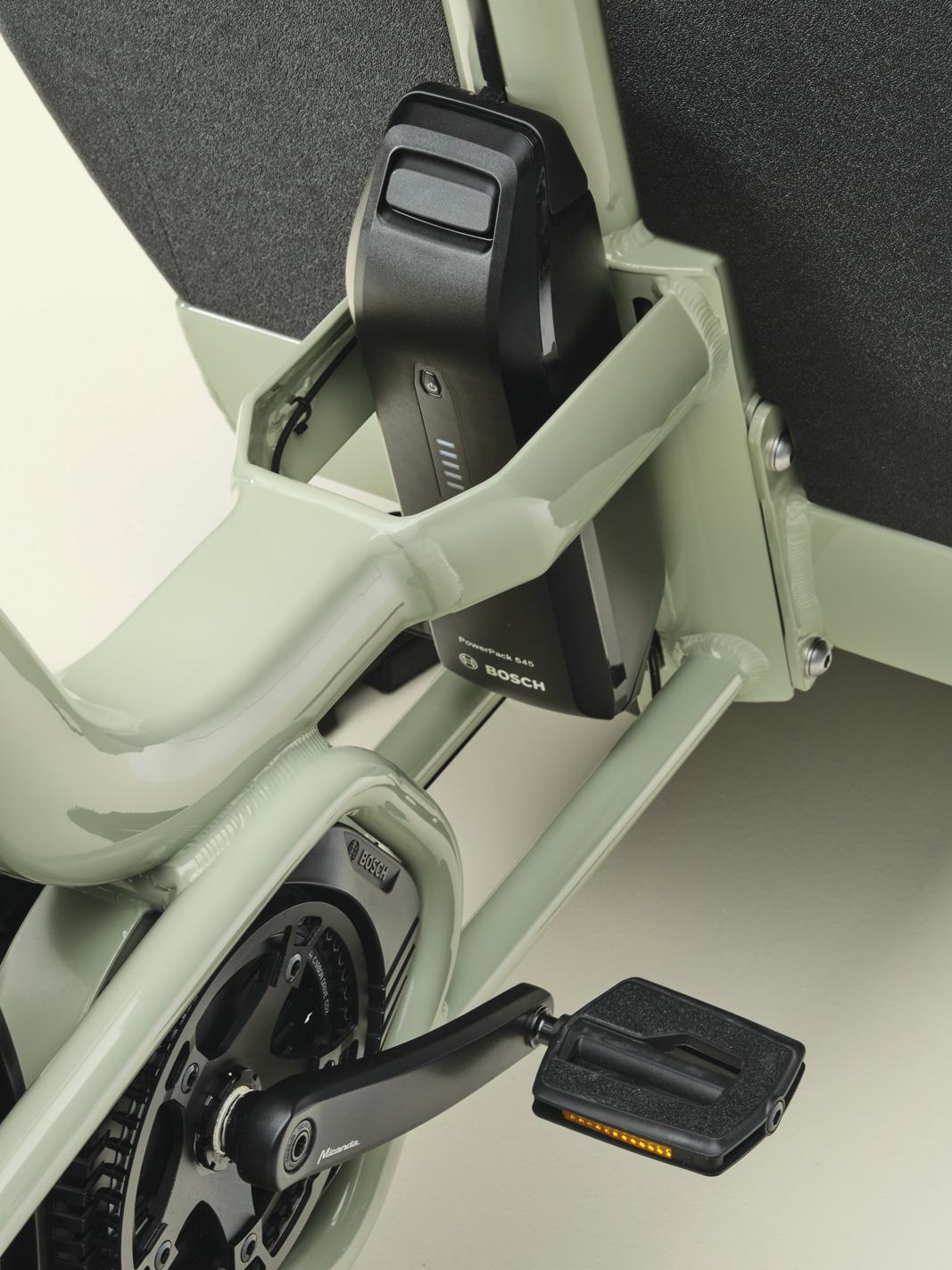

Battery: Bosch PowerPack 545Wh

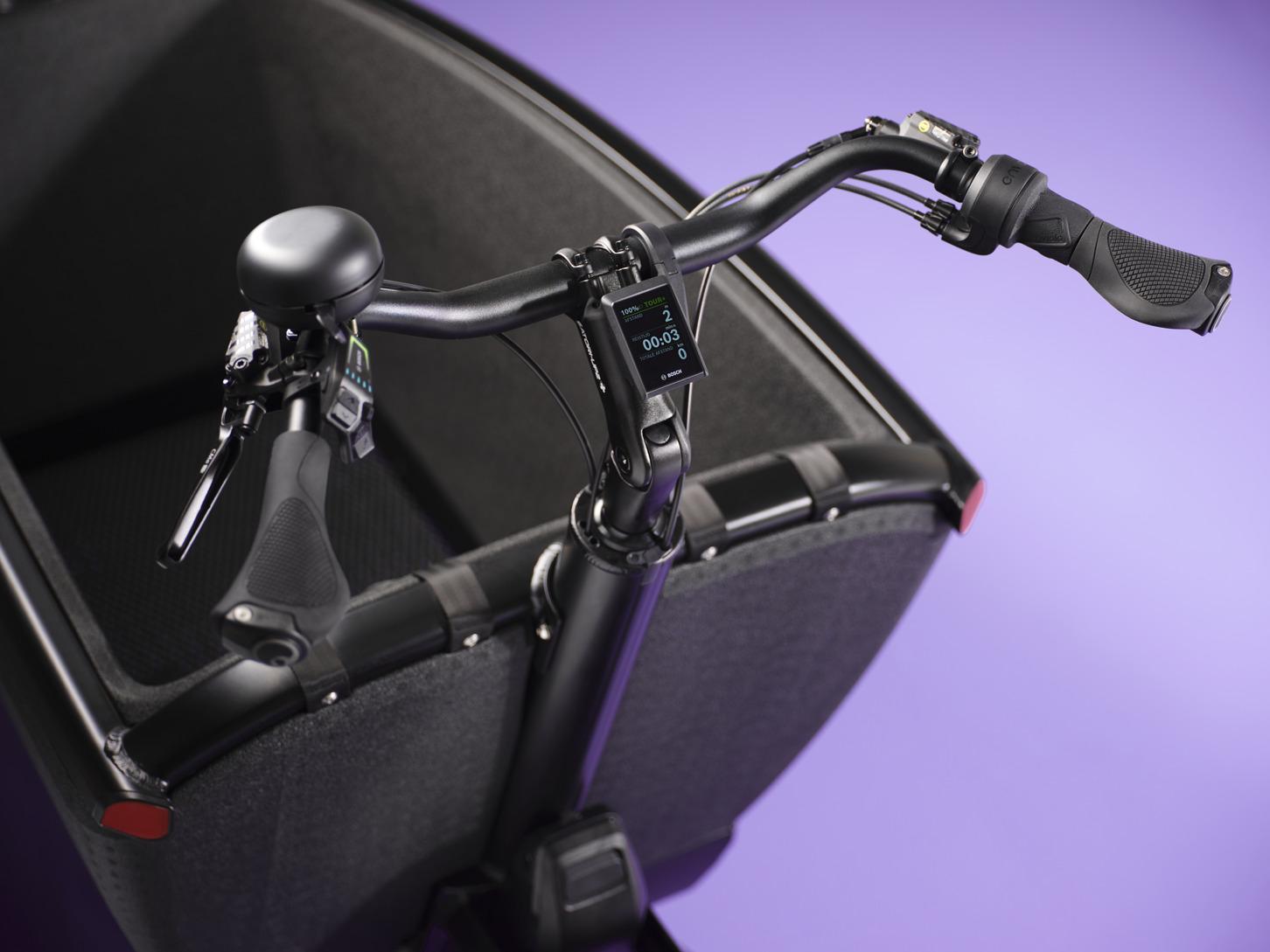

Display: Bosch LED Remote + KIOX 300
Hub & gears: Enviolo Heavy Duty
Drive line: Gates Carbon Belt Drive CDX 120T
Brakes: Magura CMe

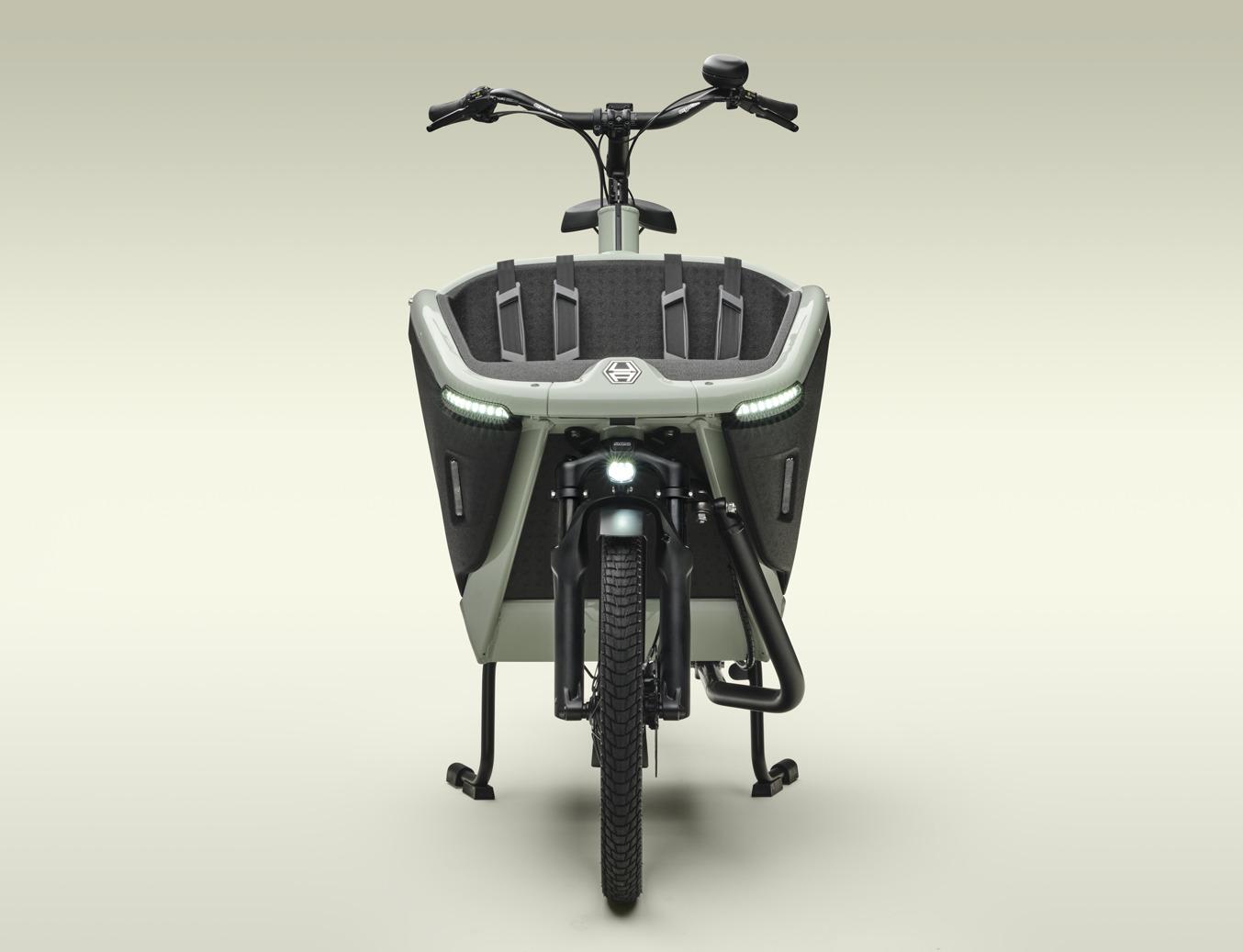

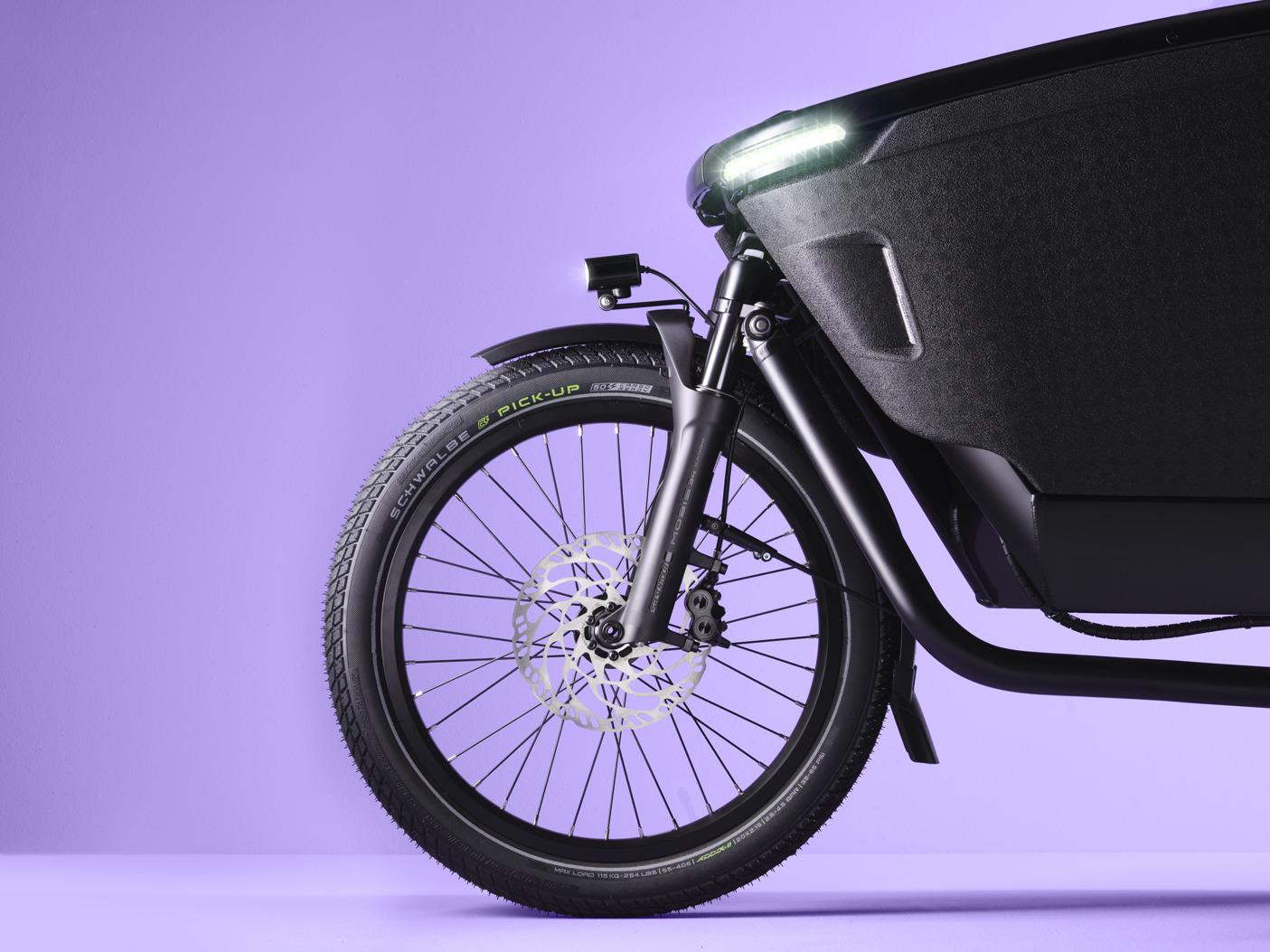

Front fork: Suspension fork, Suntour Mobie34 CGO Boost, 20", 60mm
Rear tire: Schwalbe Super Moto X 62-559
Front tire: Schwalbe Super Moto X 62-406
Weight bike: 48Kg
Outer dimensions: L 260cm x W 70cm x H 110cm
Max total weight: 250Kg (bike + rider + load)
Max front load: 125Kg
Max rider weight: 125Kg

Connected GPS-module Optional

The following warranty conditions apply to your Urban Arrow*:

  • 5-year warranty on the frame and fork, excluding wear parts;
  • 2-year guarantee on the paintwork and visible rust from the inside;

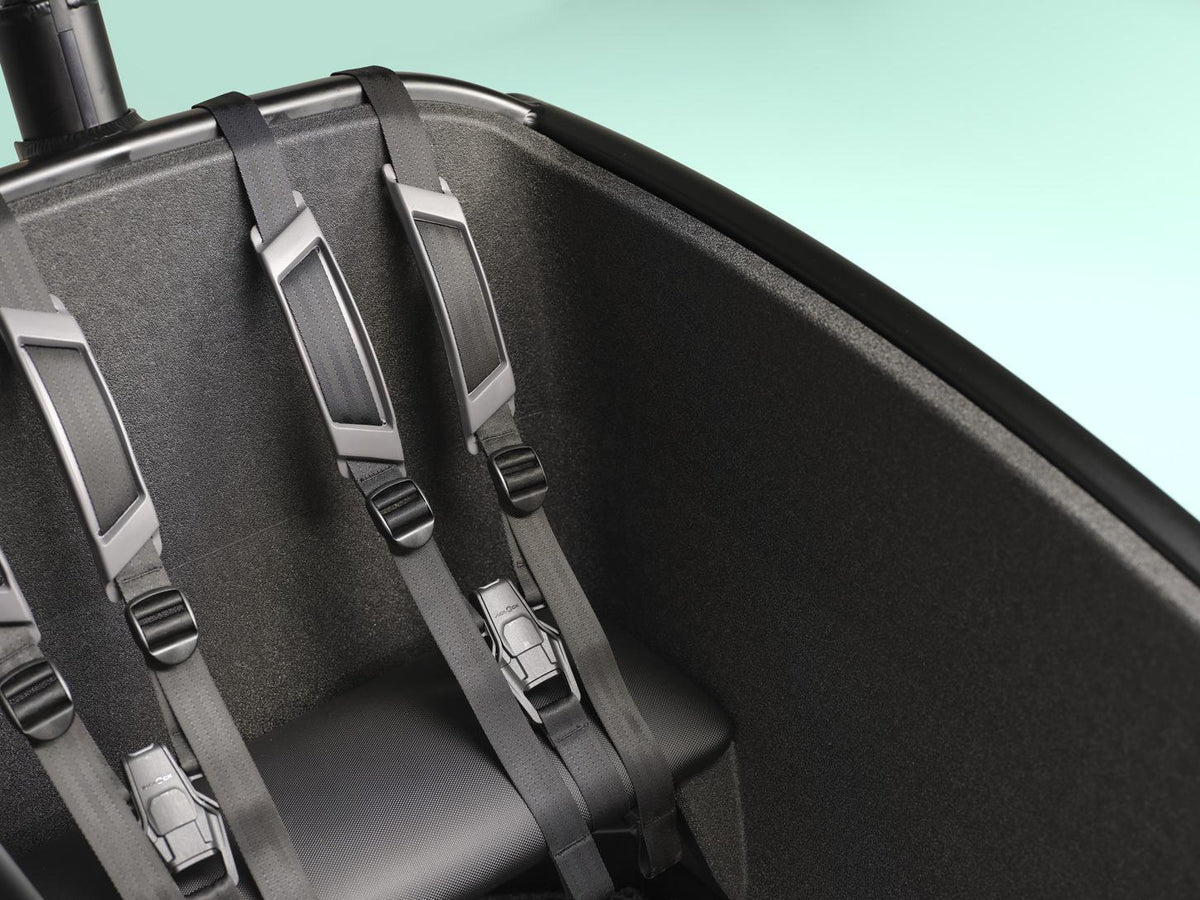

  • 2-year warranty on all other parts. Wear parts such as tyres, chain, pedals, bearings, seatbelts, ball bearings among others, are not covered by this warranty;
  • 2-year warranty on all accessories;
  • 2-year warranty on the battery. The capacity of the battery will decrease depending on the number of charging cycles and the life of the battery. This reduction in capacity is not covered by the warranty;

More information: https://servicecenter.urbanarrow.com/en/what-are-the-warranty-conditions-for-the-different-parts-of-the-urban-arrow-family#:~:text=5%2Dyear%20warranty%20on%20the,warranty%20on%20all%20other%20parts.
