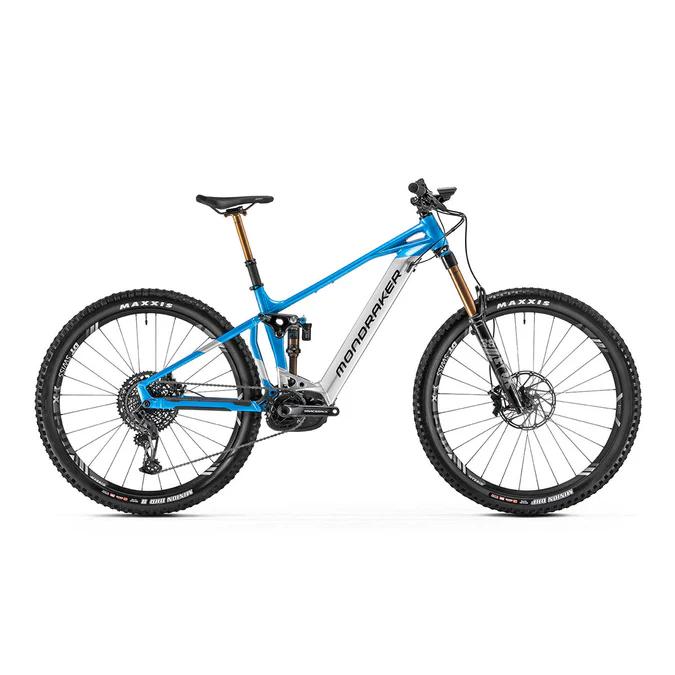

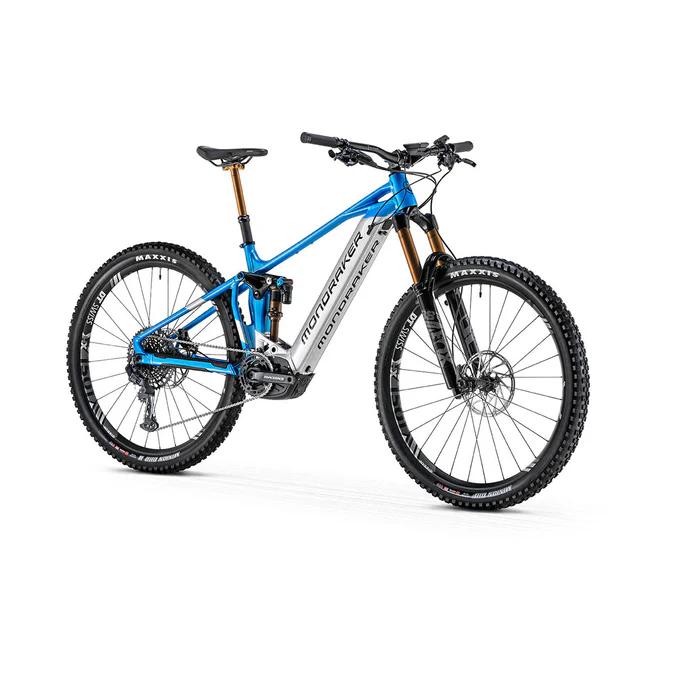

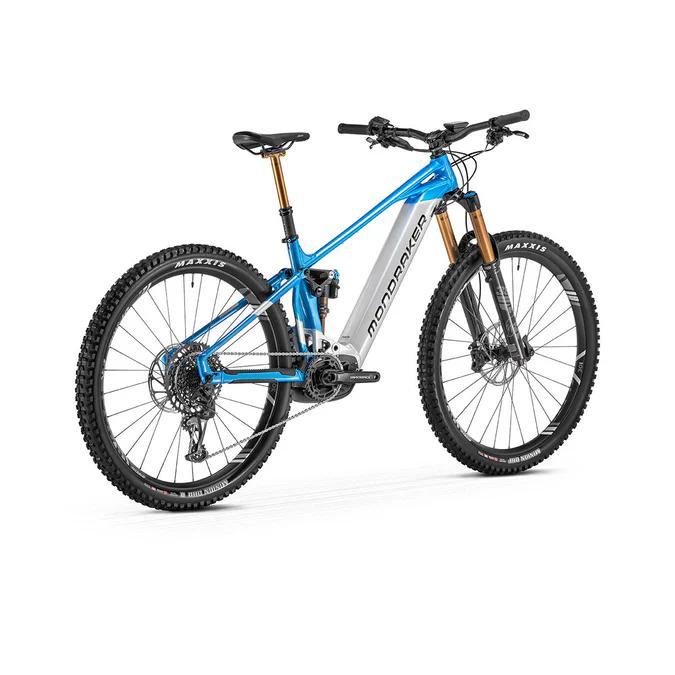

Unleash the power of the upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding.
Specs
|
FRAME |
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery with integrated alloy cover, Boost 12x148mm rear axle, taperedhead tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers |
|
SIZE |
XL: 490mm |
|
REAR SHOCK |
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
|
FORK |
Fox 38 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speedrebound, air preload |
|
SEATPOST |
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm |
|
FRONT BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
|
REAR BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
|
RIMS |
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
|
FRONT TIRE |
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
|
REAR TIRE |
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
|
REAR DERAILLEUR |
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|
CASSETTE |
Sram XG-1230, 11-50T, 12s |
|
MOTOR |
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
|
BATTERY |
Bosch Powertube 750Wh |
|
DISPLAY |
Bosch Kiox 300 |
