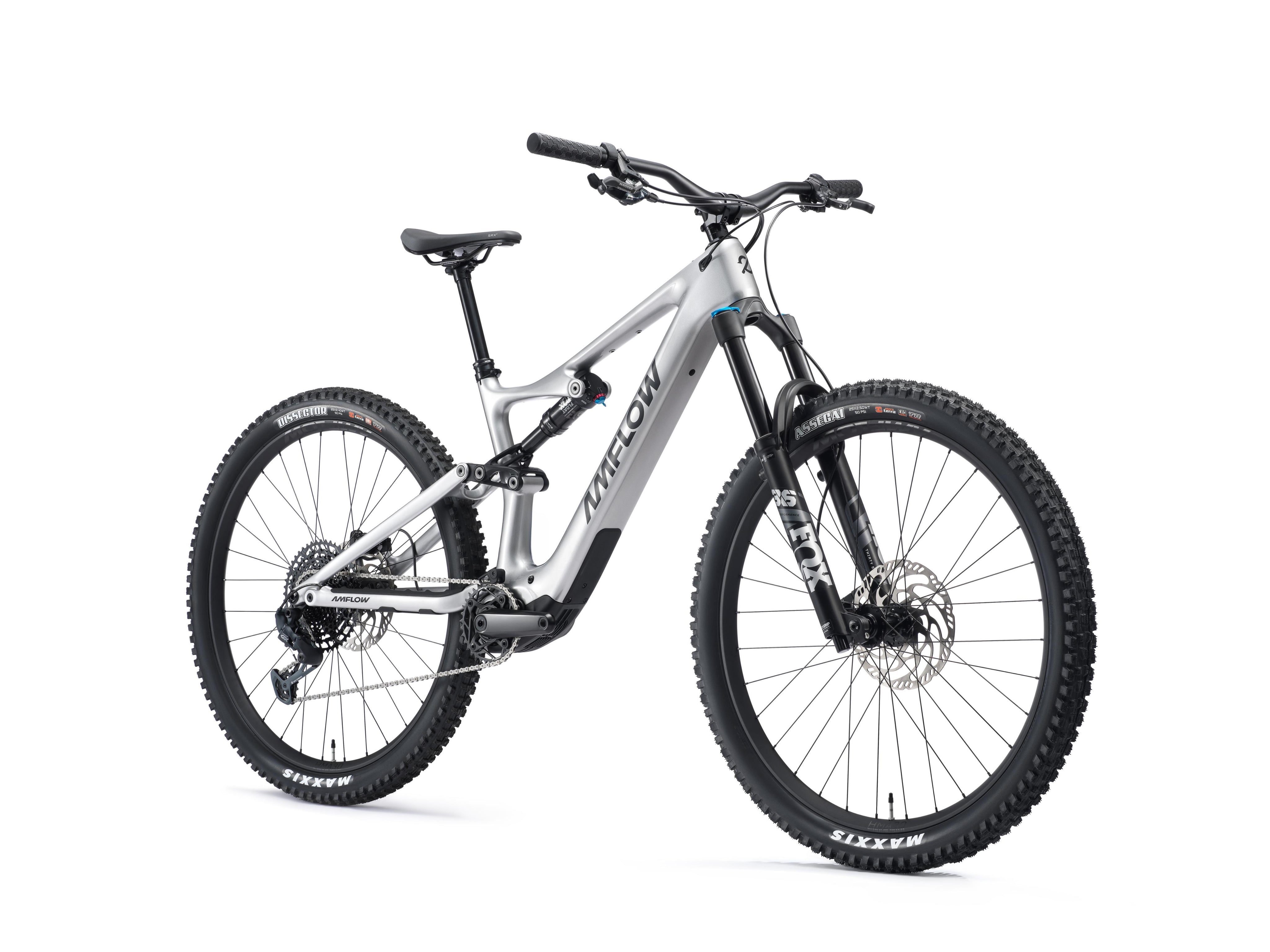

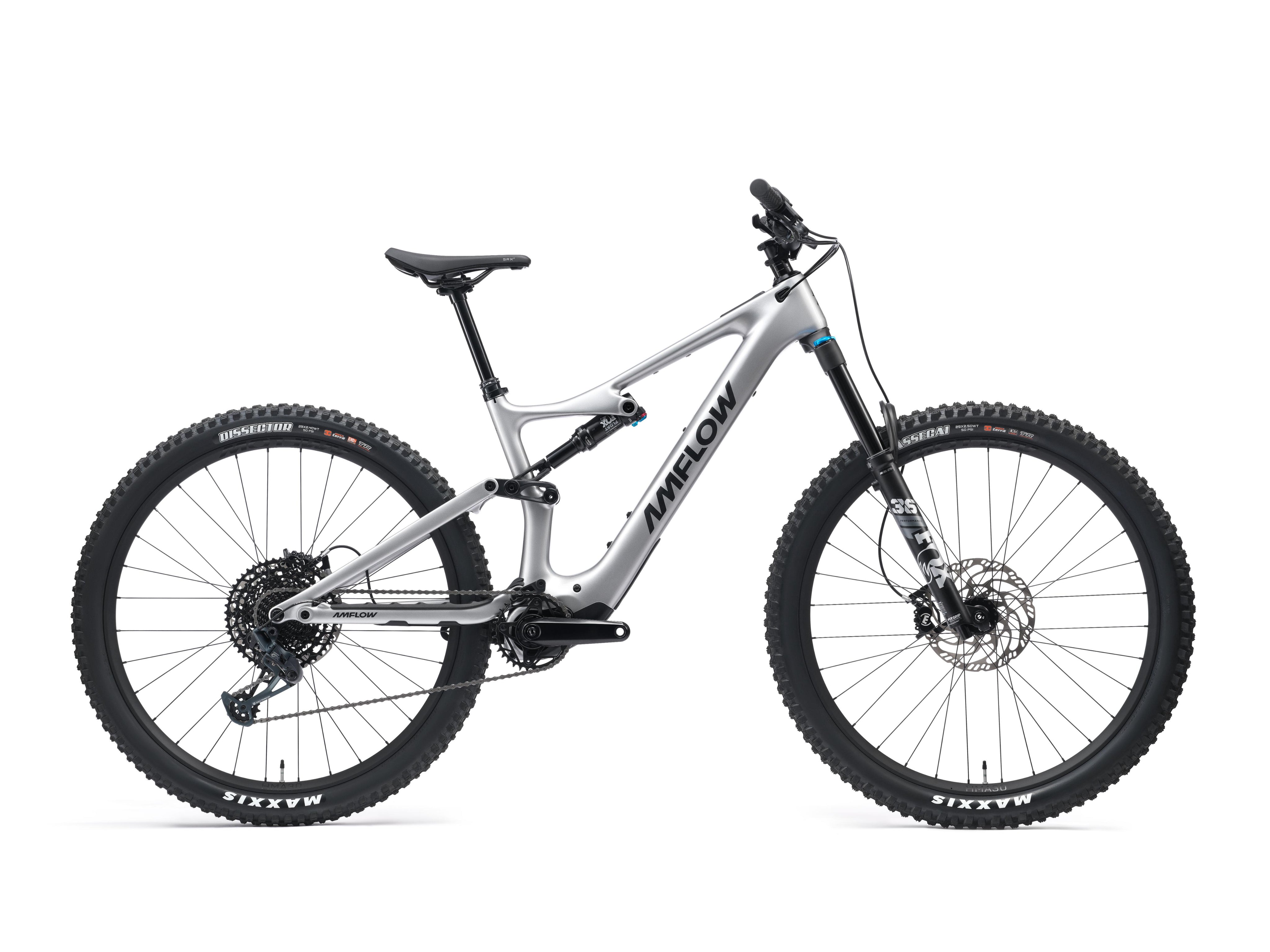

Superlight Full-Power Electric Mountain Bike.
Amflow PL offers up to 105 N·m of continuous torque in an ultra-light build, delivering a superb balance of power, range, and weight
105N·m Torque, Smooth and Powerful Output
The Avinox M1 Drive Unit is compact yet capable of delivering robust power, making it ideal for challenging climbs
Built-in Display, Smartphone Connectivity
The 2-inch OLED touchscreen displays real-time riding data such as speed and cadence. Users can also activate password authentication and abnormal movement alerts on the Avinox app
Lightweight Complete Build
The superlight carbon fi ber frame combined with the compact Avinox M1 Drive Unit enables fast and agile riding.
800Wh Battery, 3x Fast Charge [1]
The fast charger is light and portable, capable of charging the battery from 0% to 75% in approx. 1.5 hours. [2]
New Intelligent Walk Assist
Featuring Auto Hold to prevent rollback on slopes, the bike also supports Hill Start Assist and stationary gear shifting for a smooth and intuitive experience.
|
Frame Material and Color |
Carbon Fiber Satin Silver |
| Drive System | Avinox Drive System Motor Torque: 105 N·m Battery Capacity: 800Wh Control Display: 2-inch high-resolution OLED screen, supports GPS, 4G network, [3] Bluetooth, and ANT+, with built-in power meter, cadence, and other sensors. Wireless Controllers: Right and left sides Charger: 12A/508W |
| Fork | 2026 FOX 36 Performance - GRIP Travel: 160mm Rake: 44mm |
| Rear Shock | 2026 FOX FLOAT Performance 185×55mm |
| Crankset | M/L Frame: 155mm XL/XXL Frame: 160mm Avinox SL Aluminum Crank |
| Transmission | Rear Derailleur: SRAM Eagle 70 Transmission Derailleur Chainring: SRAM Eagle Transmission E-MTB Chainring 104 BCD 34T Shift Levers: SRAM Eagle 70 Transmission Shifter | Single Click Cassette: SRAM XS-1270 Eagle,10-52T |
| Brake | Brake: MAGURA MT5 (HC Lever) Rotor: 203mm MDR-C (front and rear) |
| Wheels | Size: Front wheel: 29"; rear wheel: 29" Material: Alloy, Amfl ow HMA-30 Rims: 30mm internal width, 32H, tubeless ready Spokes: Sapim E-Light 1.6mm Hubs: 21 Engagement Points |
| Seatpost | KS RAGE-i M Frame: 150mm L Frame: 170mm XL/XXL Frame: 190mm |
[1]. Amflow PL comes with a 12A/508W charger, which charges at a rate three times faster than a 4A/168W charger.
[2]. Time for charging from 0% to 75% in a 25° C (77° F) laboratory environment, which is approx. 89 minutes for the 600Wh battery and approx. 96 minutes for the
800Wh battery. This data is for reference only. Actual user experience may vary.
[3]. 4G communication function requires the additional purchase of a SIM card.
